Specifications Kanomax 6006-DG: Anemomaster Anemometer
— Air Velocity
Range: 0.01 m/s to 20.0 m/s (2 FPM to 3940 FPM)
Resolution: 0.01 m/s (@ 0.01 to 9.99 m/s); 0.1 m/sec (@10.0 to 20.0 m/s)
Accuracy: +/- 5% of READING or +/- 0.015 m/s whichever is greater
Response Time: Less than 1 second at 196 fpm (1m/sec), 90% response
Range: +/-2°F (1°C)
Resolution: 0.2 F (0.1 C)
Accuracy: +/- 1°F (+/- 0.5 °C)
Response Time: Less than 30 seconds at 196 fpm (1 m/sec), 90% response
— General Specifications
Power Supply: 4 x AA batteries
Operaing Environment: Main unit 41 to 104°F (5 to 40°C); Probe -4 to 158°F (-20 to 70°C)
Storage Environment: 14 to 122°F (-10 to 50°C)
Dimensions: Main unit 2.4″(60mm) x 4.7″(120mm) x 1.2″(30mm); Probe: 0.24″ or 0.40″(6 or 10mm) diameter x 7.9″(200mm) length.; Probe cable: 0.13″(3.3mm) diameter x 59″(1,500mm) length.
Weight: 0.4 lbs (180 g)
Warranty: 2 year

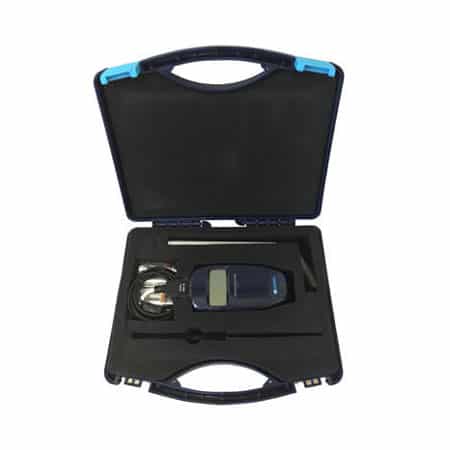

What’s Included: Operation Manual, AA Batteries, Extension Rod, Carrying Case, NIST Certificate

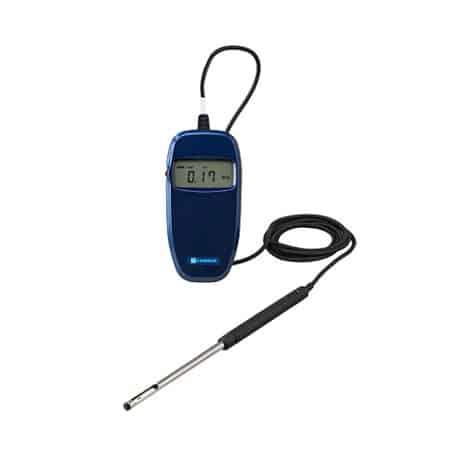

Introduction Kanomax 6006-DG
The new Climomaster TM is the most accurate hot-wire anemometer of its kind. It offers research-grade accuracy at an affordable, industry competitive price. Kanomax ensures the high accuracy of this anemometer with over 60 years experience, a special platinum-coated sensor that improves stability and durability, and a production facility that uses multiple types of wind tunnels. This combination guarantees the accuracy and reliability of our products. A high degree of accuracy is essential for applications such as cleanroom certifications, laminar flow measurements, and R&D product development.
As a product from the Kanomax brand – USA, the 6006-DG anemometer can perform both the measurement of wind speed and air temperature at the same time. The device contributes to comprehensive environmental testing.
Anemometers are one of the types of measurement equipment commonly used for HVAC system testing, facility maintenance, certification of important environmental criteria, IAQ (Air Quality) investigation. indoors ), etc
– The Kanomax 6006-DG is capable of measuring wind speeds from 20 to 3940 FPM (0.01 to 20.0 m/s).
– Capable of measuring temperature in the range -4 to 158°F (-20 to 70°C)
– Compact handheld design with a weight of only 180g
– The probe can be easily disassembled for replacement without the need to recalibrate the unit
– Measurement results can be displayed in Metric units (m/s, °C) or the Imperial system of units (FPM, °F).
