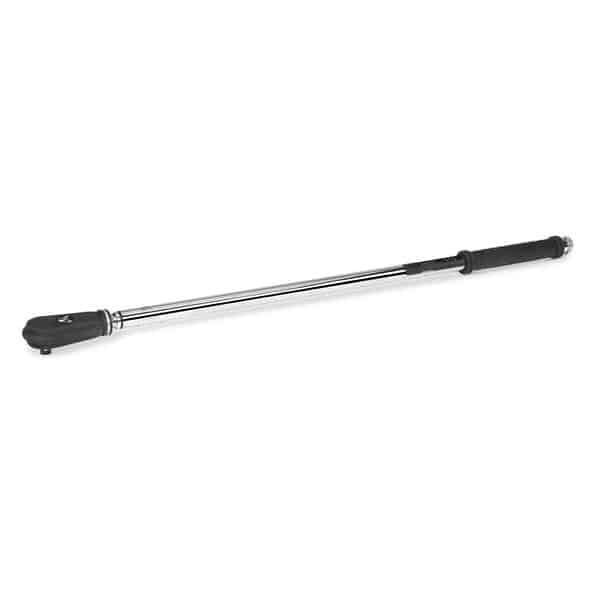

Specifications 3/4″ Drive Fixed-Head ControlTech® Industrial Torque Wrench (30–600 ft-lb) – CTECH4R600A
Torque Range, ft-lb | 30–600 |
Torque Range, in-lb | 360-7,200 |
Length, inches (mm) | 48.6 (1,234) |
Gear Action | 11° |
Shank Diameter, inches | — |
Batteries | (3) AA required / (3) AA Lithium (Included) |
Country Of Origin | USA |
Storage Case | Yes |
Gear Teeth | 32 |
Torque Range, N•m | 40.7–813.5 |
Weight, lb (kg) | 10.5 (4.8) |
Ratchet Service Kit | RKRQC4 |
Head Type | Sealed Fixed Head |
Square Drive, inches | 3/4 |
Features
• Torque: 30–600 ft-lb
• Torque Accuracy: ±2% CW and ±3% CCW, 20-100% of full scale
• Angle Accuracy: ±1% of Reading, ± 1° @ Angular Velocity >10°/Sec <180°/Sec
• Angle range: 0–360°
• Torque and angle combo modes provide the most accurate and fastest way to achieve torque plus angle in a single motion
• Built-in calibration factor for different head lengths
• Dual side LED indicator lights with configurable settings including customizable passwords
• Large LCD screen with backlight
• Four indicator modes: LCD, LED, audible and vibratory
• Rugged, all-steel body for strength
• 50 presets with lockout ability
• Sequence programming and job mode
• USB downloadable data
• Storage capacity: 1,500 readings
• Number of presets: 50
• Operating temperature: 0–130 °F (-18–54 °C)
• Storage temperature: 0–130 °F (-18–54 °C)
• Humidity: up to 90% Non-condensing
• Includes storage case
• Complies with ISO®-6789-2003 and ASME® B107.300 (B107.28) standards for electronic torque instruments
Warranty
Snap-on Repair Center, 2 YEARS from Date of Purchase, Repair or Calibrate at Snap-on Repair Center.
