OUTDOOR

POWER EQUIPMENT

533MM (21'') MOWER
Quik Lok Attachment System

QUIK-LOK™

ATTACHMENT SYSTEM



Multiple Attachments Powered By a Single Power Head

Quik Lok Attachment System 1

Designed to meet the needs of landscape maintenance professionals, the QUIK-LOK Attachment System is a versatile outdoor power equipment system featuring multiple attachments powered by a single M18 FUEL Power Head. With the QUIK-LOK Attachment System, you have the capability to switch between multiple attachments including a line trimmer, edger, hedge trimmer and pole saw to complete a wide range of applications.


Powered by M18 FUEL, the QUIK-LOK Attachment System utilizes the most advanced cordless technology to deliver best-in-class power and run-time for landscaping and trade professionals, achieving instantaneous throttle response and outperforming higher voltage platforms.

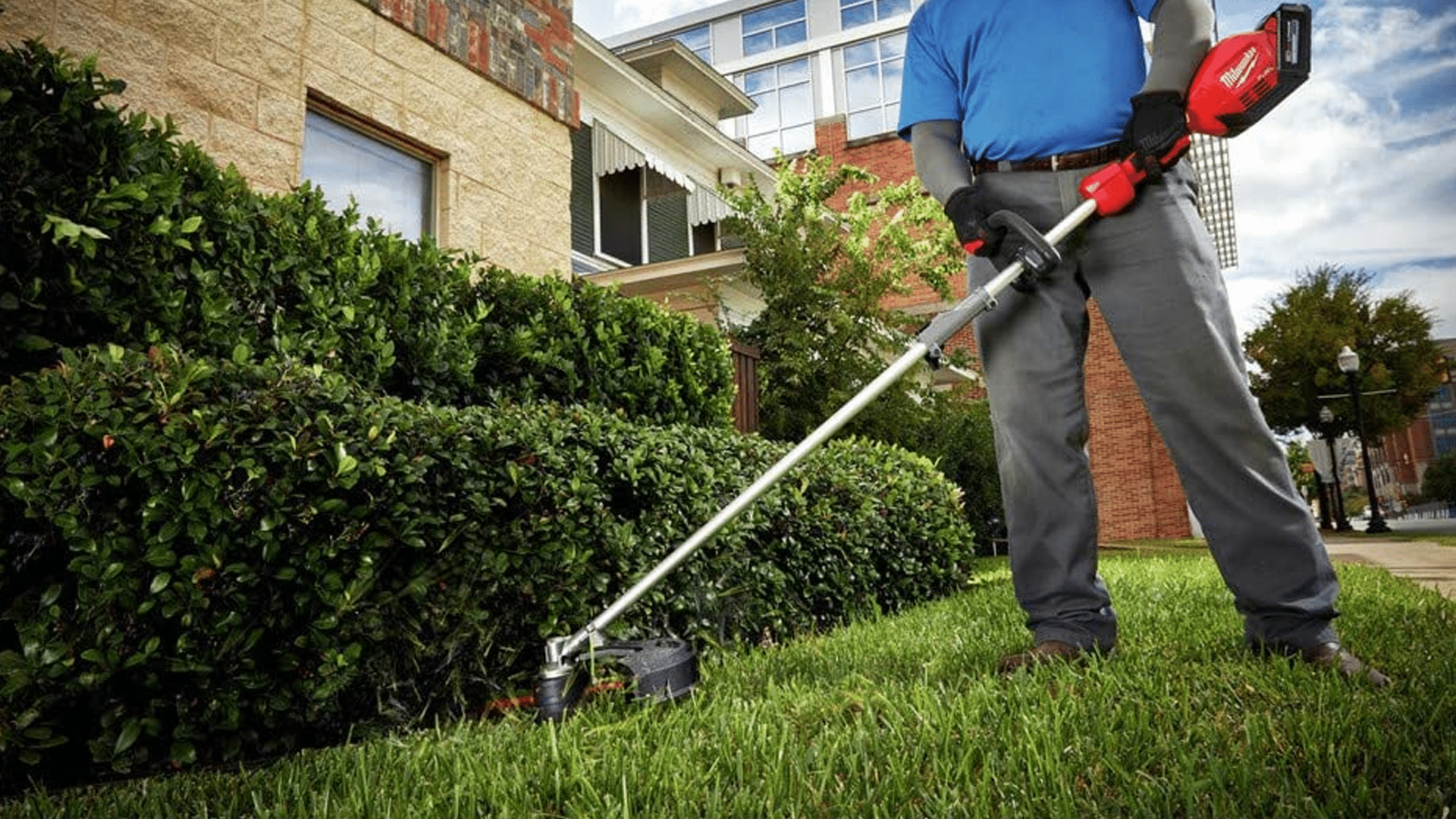

milwaukee m18 fuelGEN 2 QUIK LOK – BRUSH CUTTER ATTACHMENT

M18 BCA

Voltage M18
Speed Setting 2
No Load Speed – Low (rpm) 4900
No Load Speed – High (rpm) 6200
Blade Size (mm) 230
Max Cutting Capacity (mm) 32
Weight (kg) 1.6
Milwaukee M18 BCA

milwaukee m18 fuelGEN 2 QUIK LOK – BRISTLE BRUSH ATTACHMENT

M18 BBA

Voltage M18
Speed Setting 2
No Load Speed – Low (rpm) 150
No Load Speed – High (rpm) 200
Cleaning Capacity (mm) 584
Weight (kg) 6.5
M18 BBA

milwaukee m18 fuelGEN 2 QUIK LOK – RUBBER BROOM ATTACHMENT

M18 RBA

Voltage M18
Speed Setting 2
No Load Speed – Low (rpm) 150
No Load Speed – High (rpm) 200
Cleaning Capacity (mm) 584
Weight (kg) 7.3
Voltage 18V
Speed Settings 2
No Load Speed – Low (rpm) 0-6860
No Load Speed – High (rpm) 0-8680
Length (mm) 881
Weight w/ 9.0Ah Battery Pack (kg) 4.1
M18 FOPH

milwaukee m18 fuelOUTDOOR POWER HEAD QUIK LOK LINE TRIMMER KIT

M18 FOPHLTKIT

Voltage 18V
Speed Settings 2
No Load Speed – Low (rpm) 0-4900
No Load Speed – High (rpm) 0-6200
Max. Cutting Capacity (mm) 400
Cutting Line Max. Diameter (mm) 2.4
Length (mm) 1829
Weight w/ 9.0Ah Battery Pack (kg) 5.8
M18 FOPHLTKIT
Voltage 18V
Speed Settings 2
No Load Speed – Low (rpm) 0-3700
No Load Speed – High (rpm) 0-4600
No Load Chain Speed (m/s) 8.6
Bar Length (mm) 254
Usable Cutting Length (mm) 230
Chain Oil Tank Capacity (ml) 140
Length (mm) 1245
Weight (kg) 1.9
Voltage 18V
Speed Settings 2
No Load Speed – Low (rpm) 0-2800
No Load Speed – High (rpm) 0-3500
Blade Length (mm) 508
Max. Cutting Capacity (mm) 25
Tooth Spacing (mm) 25
Length (mm) 1524
Weight (kg) 2.6
QUIK-LOK HEDGE TRIMMER ATTACHMENT
Voltage 18V
Speed Settings 2
No Load Speed – Low (rpm) 0-3000
No Load Speed – High (rpm) 0-3900
Blade Diameter (mm) 203
Max. Cutting Capacity (mm) 50
Length (mm) 965
Weight (kg) 2.4
QUIK-LOK EDGER ATTACHMENT
Voltage 18V
Speed Settings 2
No Load Speed – Low (rpm) 0-4900
No Load Speed – High (rpm) 0-6200
Max. Cutting Capacity (mm) 400
Cutting Line Max. Diameter (mm) 2.4
Length (mm) 1020
Weight (kg) 1.7
Voltage 18V
Length (mm) 1029
Weight (kg) 0.9
QUIK-LOK EXTENSION ATTACHMENT

QUIK-LOK
ATTACHMENT SYSTEM ACCESSORY

QUIK-LOK ATTACHMENT SYSTEM ACCESSORY
Voltage 18V
No load chain speed (m/s) 12.4
Max Bar Length (mm) 406.4
Usable Cutting Length (mm) 380
Chain Oil Tank Capacity (mL) 200
Chain Gauge (mm) 1.1
Chain Pitch (mm) 9.5 low profile
Variable Speed Trigger Yes
Weight w/ 12.0Ah battery pack (kg) 6.4
Voltage 18V
No load chain speed (m/s) 12.4
Max Bar Length (mm) 304.8
Usable Cutting Length (mm) 280
Chain Oil Tank Capacity (mL) 200
Chain Gauge (mm) 1.1
Chain Pitch (mm) 9.5 low profile
Variable Speed Trigger Yes
Weight w/ 12.0Ah battery pack (kg) 6.3

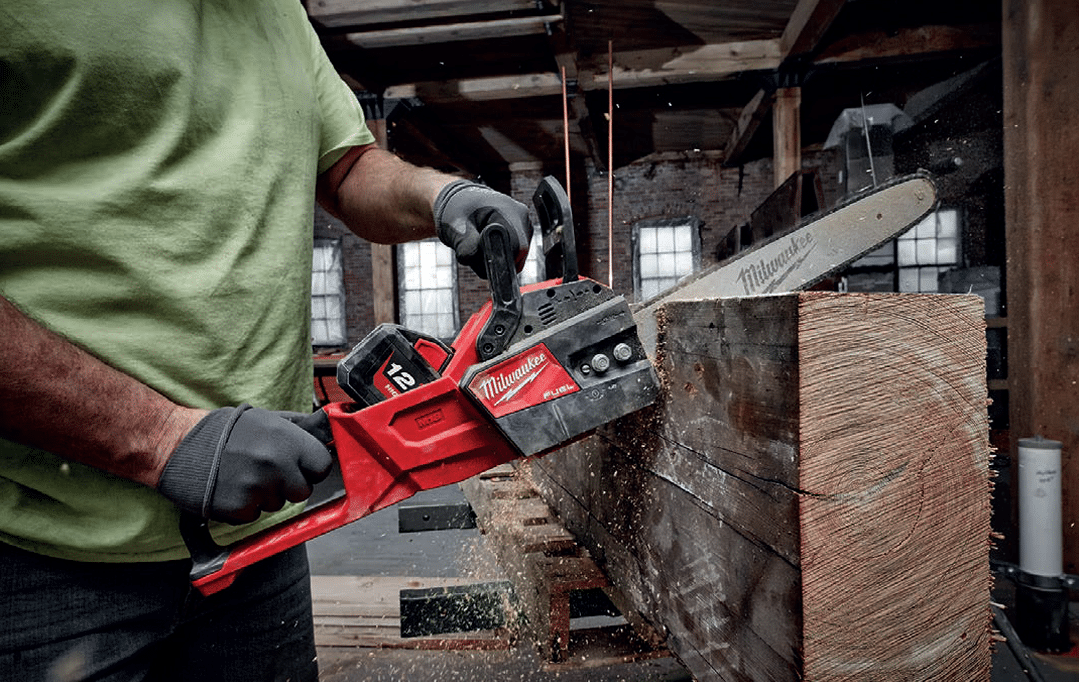

milwaukee m18 fuel TOP HANDLE CHAINSAW

M18 FTHCHS35

Voltage M18
No load chain speed (m/s) 15
Max Bar Length (mm) 355.6
Usable Cutting Length (mm) 343
Chain Oil Tank Capacity (mL) 130
Chain Gauge (mm) 10.9
Chain Pitch (mm) 8.3
Variable Speed Trigger Yes
Weight w/ 12.0Ah battery pack (kg) 3.9
TOP HANDLE CHAINSAW
HATCHET PRUNING SAW M12 FHS
Voltage 12V
No load chain speed (m/s) 5
Max Bar Length (mm) 152
Usable Cutting Length (mm) 140
Chain Oil Tank Capacity (mL) 50
Weight w/ 6.0Ah battery pack (kg) 2.3

ACCESSORY

ACCESSORY CHAINSAW

milwaukee m18 fuel HEDGE TRIMMER

M18 CHT

Voltage 18V
Stroke Per Minute (spm) 3400
Blade Length (mm) 610
Cutting capacity (mm) 19
Sharpening Angle to Horizontal (º) <30
Tooth Spacing (mm) 19
Weight w/ 9.0Ah Battery Pack (kg)  5
HEDGE TRIMMER M18 CHT
HEDGE TRIMMER M18 CHT

8” HEDGE TRIMMER

M12 FHT20

Voltage M12
Stoke Per Minute (spm) 2,700
Blade Length (mm) 203
Cutting capacity (mm) 12.5
Sharpening Angle to Horizontal <30
Blade Gap (mm) 8
Weight w/ M12 2.0 Ah-6.0 Ah (kg)  1.23-1.47
8” HEDGE TRIMMER - M12 FHT20

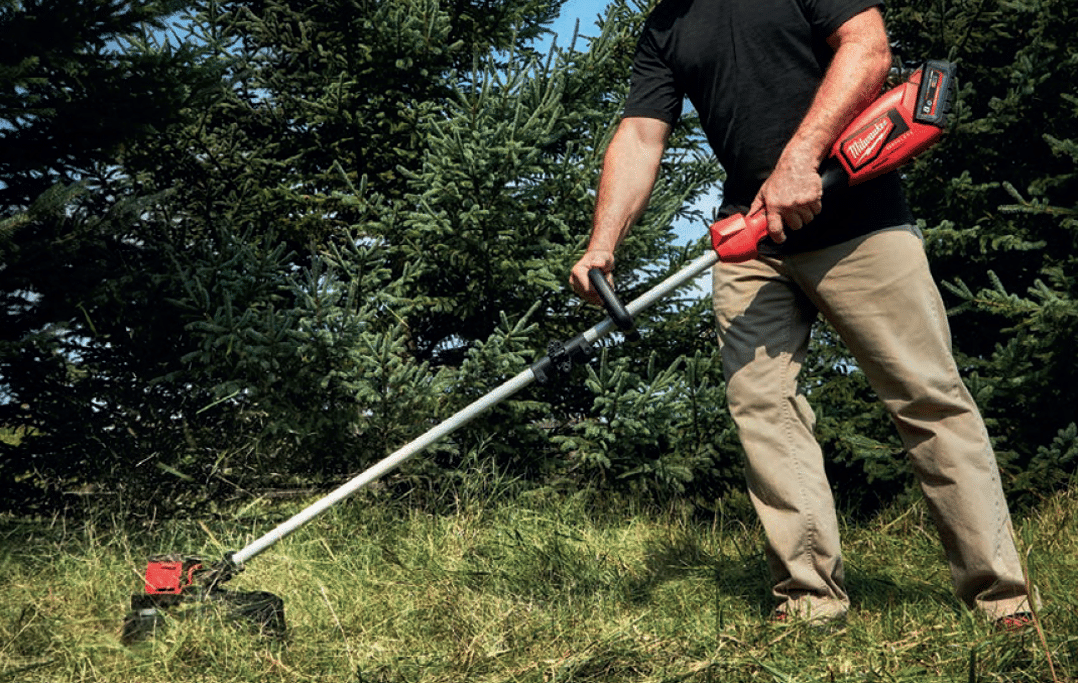

milwaukee m18 fuel BRUSHLESS LINE TRIMMER

M18 BLLT

Voltage 18V
Max RPM 6200
No Load Speed-Low (rpm) 4600
No Load Speed-High (rpm) 6200
Cutting line ø max (mm) 2.4
Cutting Swath Diameter (mm) 350-400
Cutting capacity max 400 mm
Length (mm) 1800
Weight w/ M18 HB8 Battery (kg) 5.4
M18 BLLT BRUSHLESS LINE TRIMMER
Voltage 18V
Max. Air Volume (m³/minute) 12.7
Max. Airflow Speed (km/h) 193
Noise Rating (db) 98
Lock On Button Yes
Total Length (mm) 859
Weight w/ 9.0Ah Battery Pack (kg) 3.3

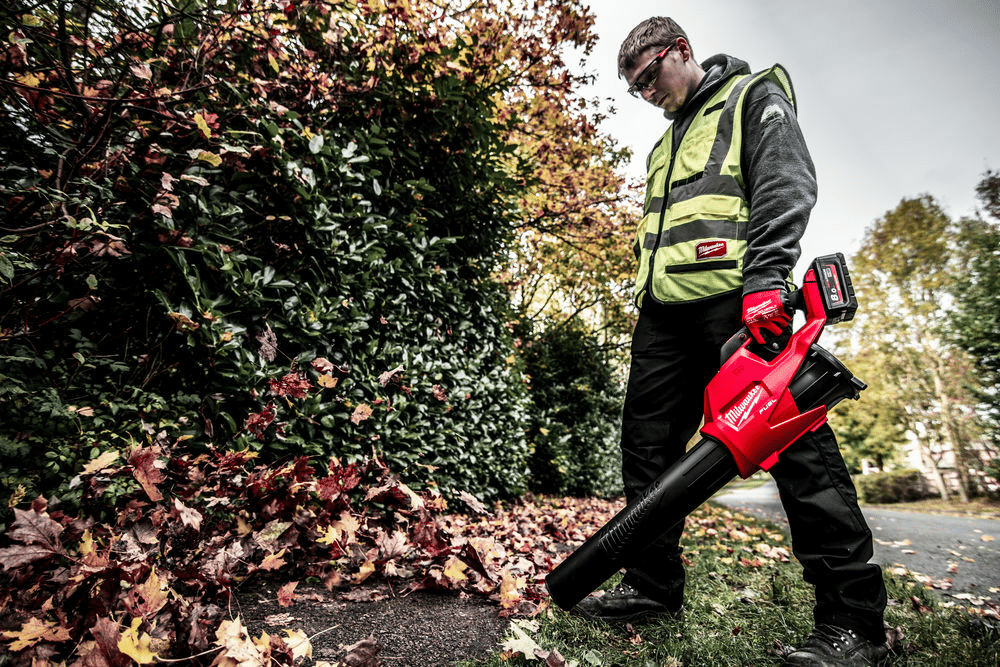

M18 FBL BLOWER
M18 FBL

milwaukee m18 fuel DUAL BATTERY BLOWER

M18 F2BL

Voltage M18
Max. Air Volume (m³/minute) 17
Max. Airflow Speed (km/h) 233
Noise Rating (db) 64
Lock On Button Yes
Weight (kg) 2.7
M18 F2BL DUAL BATTERY BLOWER
M18 BPFPH
Voltage 18V
Motor Brushed
Battery M18 REDLITHIUM-ION
M18 BPFP-CST
Capacity (L) 15
Flow Rate (l/min) 0.4-2.0
Max Pressure (bar) 8.27
Hose Length w/ Sprayer Handle & Wand (m) 1.75
Nozzle Type Low Flow Rate Adjustable & Fan Nozzles
Weight w/ 4.0Ah Battery Pack & 15L Fluid (kg) 23.6 w/ Base
M18 BPFP-WST
Capacity (L) 15
Flow Rate (l/min) 0.6-4.6
Max Pressure (bar) 4.14
Hose Length w/ Quick Connect (m) 3
Nozzle Type Water Spraying Nozzle
Weight w/ 4.0Ah Battery Pack & 15L Fluid (kg) 23.7 w/ Base
SWITCH TANK SYSTEM ACCESSORY

SWITCH TANK SYSTEM ACCESSORY

MILWAUKEE SWITCH TANK SYSTEM ACCESSORY

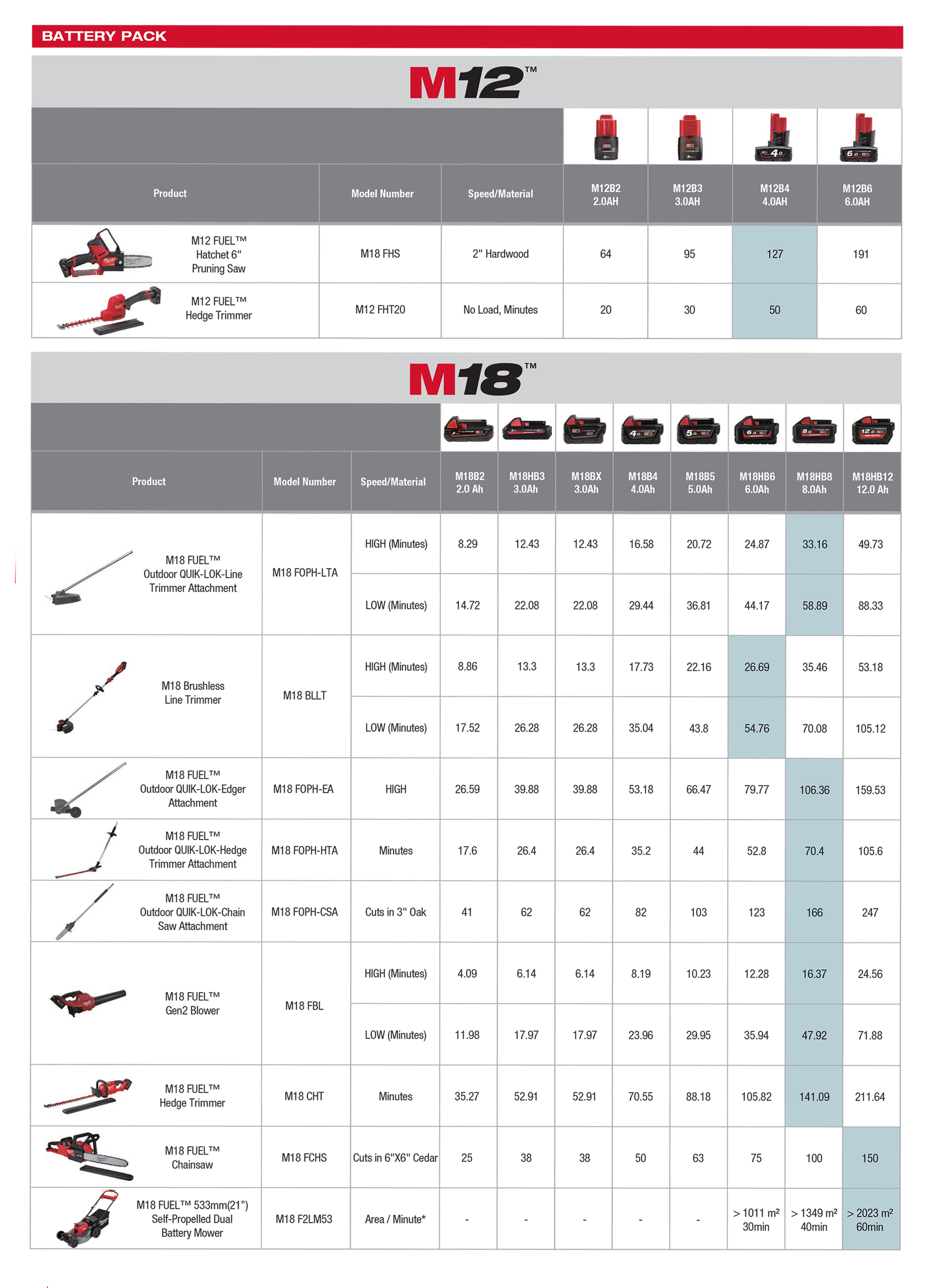

BATTERY PACK
