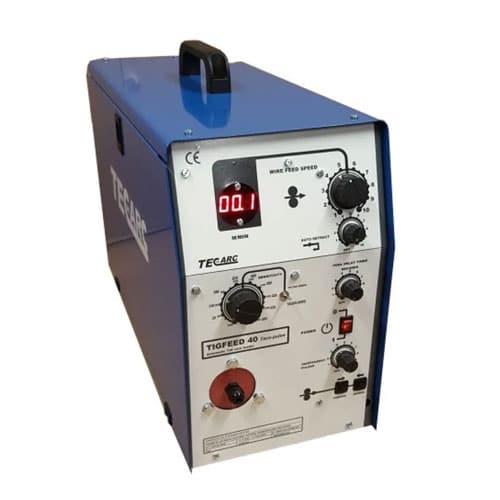

SPECIFICATIONS TECHNICAL ARC TIGFEED 40 AUTOMATIC – COLD WIRE/HOT WIRE TIG FEEDER
| Supply voltage | 230/110V |
| Filler wire dia range | 0.8-2.4mm |
| Wire spool size | 300mm |
| Pool delay time | 0-10 sec |
| Wire speed range # | 0-7M/min |
| Welding current | 20-400A DC or AC |
| Approx size | 570x220x400mm H |
# TIGFEED 40 Automatic speed range is up to 7M/min, for best speed repeatability we recomend using with the range of 1-7M/min. Faster or slower versions also available.

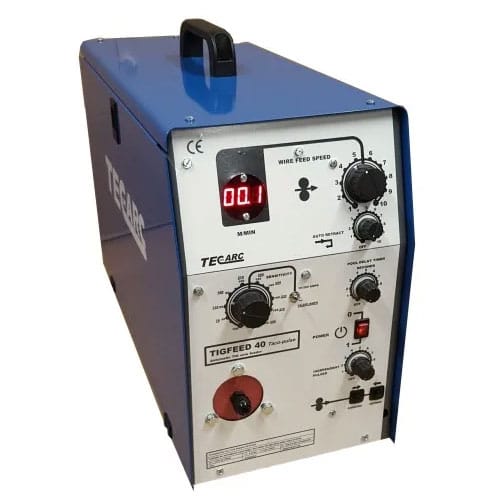

# TIGFEED 40 TACO-PULSE speed range is up to 6M/min. This model offers the highest precision feeding of wire with high torque & perfect repeatability. Usable speed range is 0.15M/min -6M/min. This model will push up to 2.4mm wire with perfect repeatability & also provides digital speed readout.
For faster or slower wire speeds please contact our technical dept.
Introduction Technical ARC TIGFEED 40 Automatic – cold wire/hot wire TIG feeder
TIGFEED 40 AUTOMATIC is designed as an easy add on for all TIG/PLASMA welding machines & torches. Ideal for automatic systems or hand welding of ferrous & non ferrous materials. The feeding of the filler wire is done automatically in synchronisation with the welding current making this unit perfect for high productivity welding.
No interfacing needed just plug in & use on any TIG or PLASMA power source.
Functions & features of TIG FEED 40
– Infinitely variable wire speed control.
– Sensitivity control to set wire feed start & finish current level.
– Pool delay timer to allow weld pool to form before feeding wire.
– Designed to pulse wire into pool in sync with welding current if required.
– Auto retract to pull wire back out of pool at finish & on pulse.
– Independent pulser function for dabbing the wire into the pool.
– Inch forward & reverse of wire.
– 4 roll wire drive system.
– Remote socket to allow PLC interfacing & remote functions etc.
– Optional TACO-PULSE version for the ultimate in precision wire feeding with digital speed read out.
Standard supply, options & accessories
Standard supply;

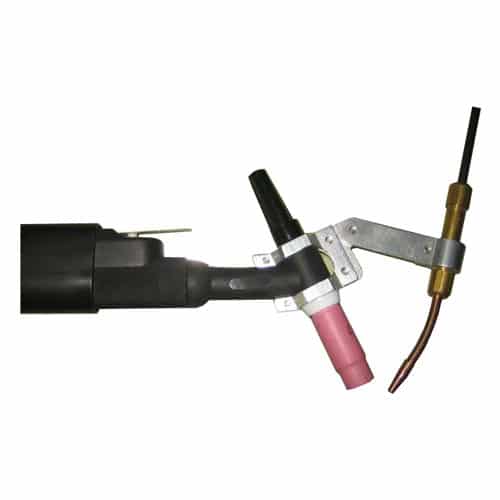

Wire feeder supplied with teflon liner & universal wire feed head to fit most TIG torches.
Options available at time of order;
- Output signal to switch on & off aux equip like hot wire PS or positioner etc.
- Different feed head- ultra compact etc
- Extra functions.
Accessories;
- Hot wire power source
- Hand held remote controller
- Wear parts for wire feeder & feed head
Lots more options including fully automated welding stations, please contact us to discuss your requirements.
